Description
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use409m³/h
- Intensive733 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 60 dB dB*
Special features
- PerfectAir sensor
- TouchControl with lightline
- 3 power levels and 2 intensive settings
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Dimmer function
- Efficient BLDC-technology
- Automatic after running (Automatic after running (10 min))
- Automatic intensive revert (6mins)

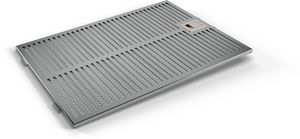

- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- No
- easy to clean Inner frame
Design
- Chimney extractor hood
- Installation: wall
- Installation system: Chimney hood wall fixing syst.
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 max. 733 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 60 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:60dB(A) re 1 pW
- Intensive:73 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 60 dB (A) re 1pW
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:334m³/h
- Intensive:428m³/h
- Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
- Intensive:73 dB(A) re 1 pW
- Power rating: 163 W
- Light Intensity: 267 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 614-954 x 598 x 500 mm
- Dimensions recirculating (HxWxD): 614-1064 x 598 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD): 795-1139 x 598 x 500 mm
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 34.3 kWh/year*
Optional accessories
- Recirculating kit DHZ1225
